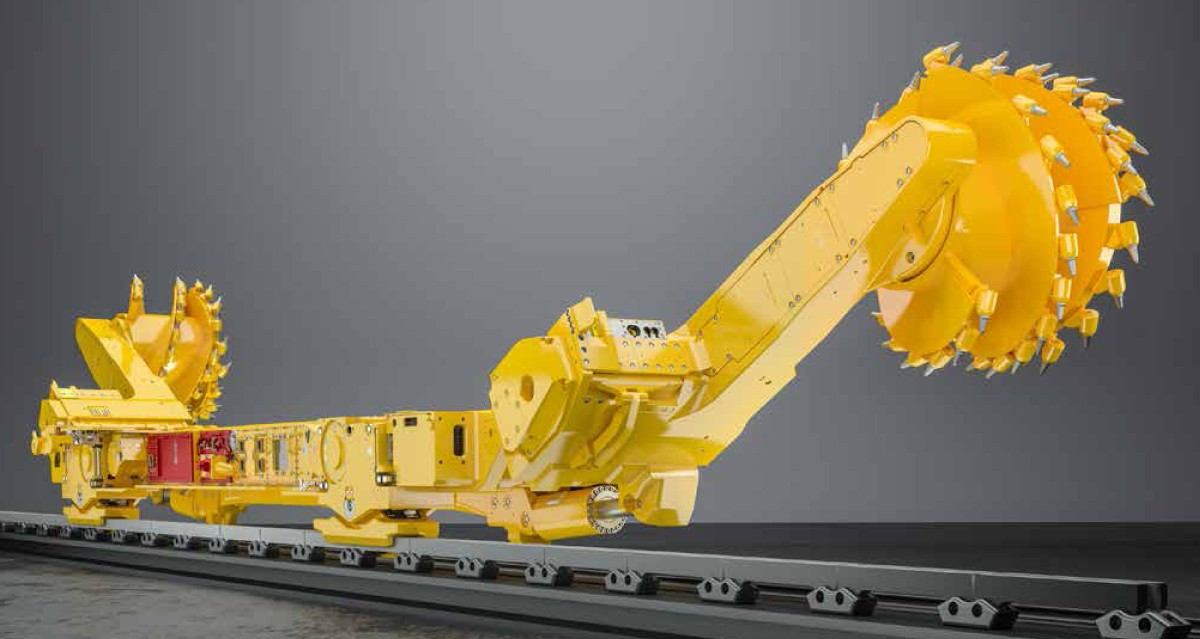

Eickhoff SL 750
‚Breeding refinement‘‚ made by Eickhoff: Here, the power of the SL 500 and the compactness of the SL 300 are united in one machine. This is how the Eickhoff SL 750 was born – a machine with a body just slightly larger than that known from the SL 300 and with an installed power which could formerly only be realized on bigger shearer loaders. The Eickhoff SL 750, having been put into operation in US high-performance longwall systems for the first time in 2006, received a throughout positive feedback on its use. And also the subsequent worldwide installation of further machines of this type fulfilled all expectations by far. According to the unanimous opinion of the customers, higher production rates are achieved more economically when using the Eickhoff SL 750 shearer loader.
![](http://www.eickhoff.pl/wp-content/uploads/2018/11/electrician_04.png)
- The ‚fastest‘ one from Eickhoff
- For thin to medium-thick seam mining

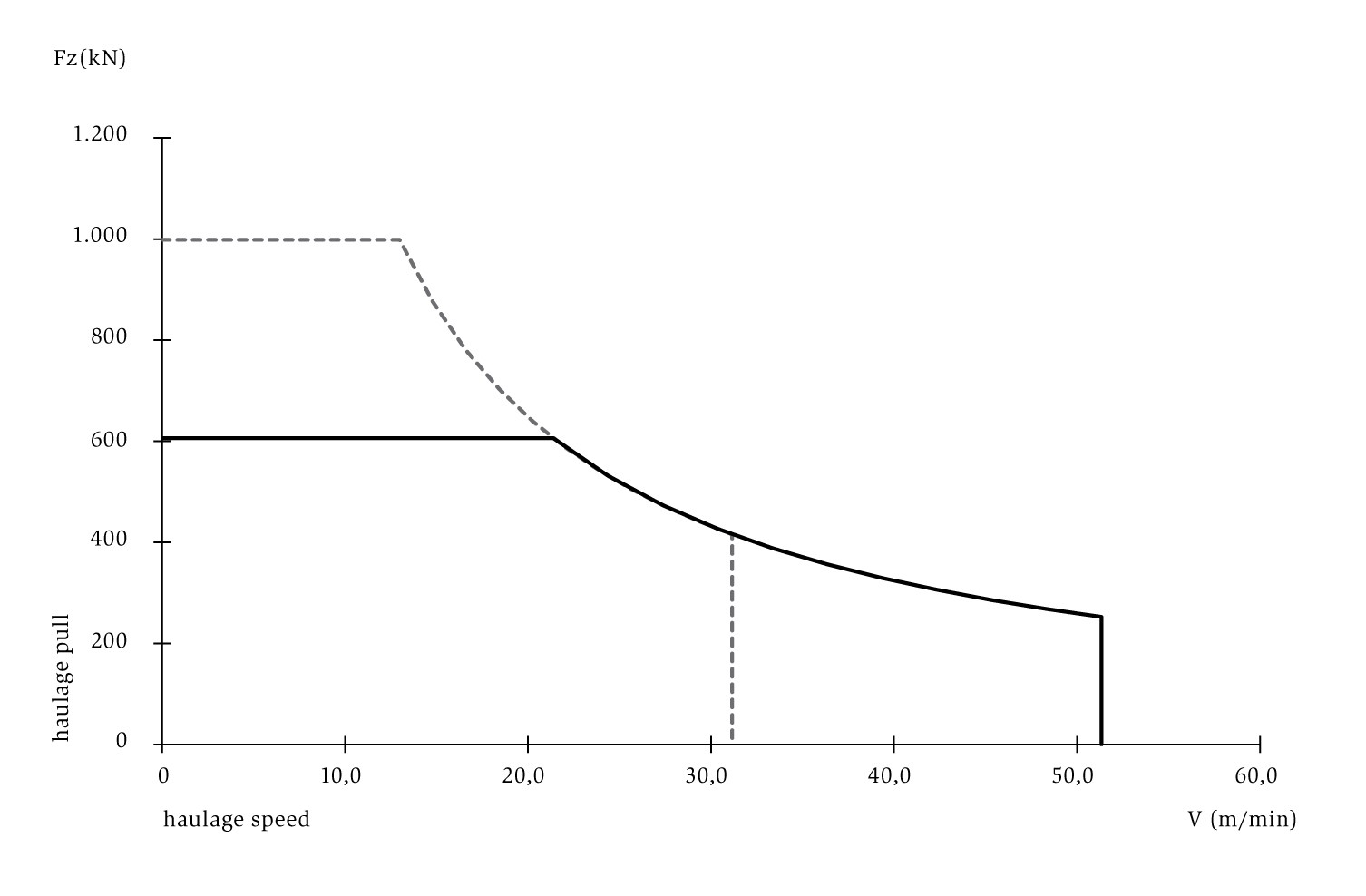

Haulage pull/speed diagram
![Haulage pull/speed diagram SL 750](http://www.eickhoff.pl/wp-content/uploads/2019/03/Diagram_SL750_ENG.jpg)
Technical details
![Ikona zakres urabiania](http://www.eickhoff.pl/wp-content/uploads/2019/02/Eickhoff_ICON_zakres.jpg)
Cutting range
1.8 – 4.8 m
![Ikona napięcie](http://www.eickhoff.pl/wp-content/uploads/2019/02/Eickhoff_ICON_napiecie.jpg)
Voltage/frequency
3,300 V/50 Hz
![Ikona moc](http://www.eickhoff.pl/wp-content/uploads/2019/02/Eickhoff_ICON_moc.jpg)
Total installed power
1,894 kW
![Ikona prędkość organu](http://www.eickhoff.pl/wp-content/uploads/2019/02/Eickhoff_ICON_predkosc.jpg)
Cutter drum speed
32 – 50 rpm
![Ikona prędkość przejazdowa](http://www.eickhoff.pl/wp-content/uploads/2019/02/Eickhoff_ICON_predkosc_przejazdowa.jpg)
Max. haulage speed
51 m/min
![Ikona masa](http://www.eickhoff.pl/wp-content/uploads/2019/02/Eickhoff_ICON_masa.jpg)
Total weight
70 – 80 tons
![Ikona długość](http://www.eickhoff.pl/wp-content/uploads/2019/02/Eickhoff_ICON_dlugosc.jpg)
Length
13,900 – 14,900 mm
![Ikona szerokość](http://www.eickhoff.pl/wp-content/uploads/2019/02/Eickhoff_ICON_szerokosc.jpg)
Width
2,700 – 3,400 mm
![Ikona wysokość](http://www.eickhoff.pl/wp-content/uploads/2019/02/Eickhoff_ICON_wysokosc.jpg)
Height
1,250 – 2,050 mm
