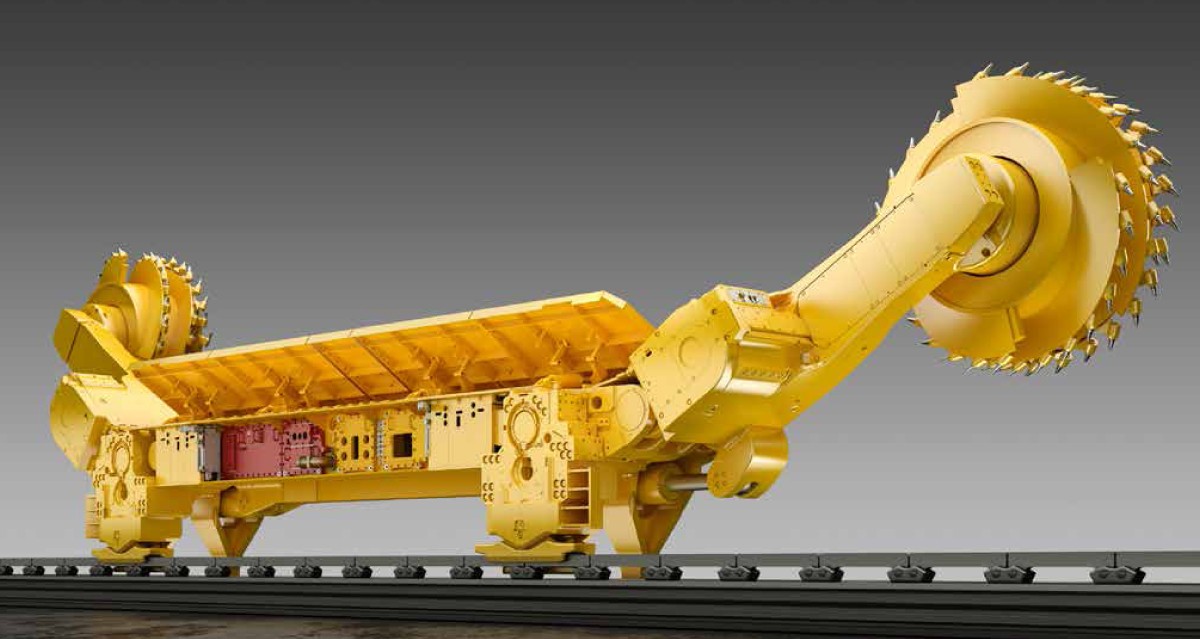

Eickhoff SL 900
The next leap in evolution: With the new SL 900 shearer loader, Eickhoff increases the production rates up to the absolute maximum. This high-performance mining machine combines the compact dimensions of the SL 750 with the staggering power of the SL 1000. Thanks to the implementation of state-of-the-art design and production techniques, a machine with impressive properties could be developed and constructed. As a result, the Eickhoff SL 900 excels by high flexibility in varying seam thicknesses ranging from 2.4 to 6.0 m – and all that along with an installed total power of more than 2,500 kW. The Eickhoff SL 900 thus covers a wide spectrum of cutting ranges while the excellent power reserves provide enormous potential for increased production rates.
![](http://www.eickhoff.pl/wp-content/uploads/2018/11/electrician_04.png)
- The ‚most versatile one‘ from Eickhoff
- For a wide range of seam thicknesses
Haulage pull/speed diagram
![Haulage pull/speed diagram SL 900](http://www.eickhoff.pl/wp-content/uploads/2019/03/Diagram_SL900_ENG.jpg)
Technical details
![Ikona zakres urabiania](http://www.eickhoff.pl/wp-content/uploads/2019/02/Eickhoff_ICON_zakres.jpg)
Cutting range
2.4 – 6.0 m
![Ikona napięcie](http://www.eickhoff.pl/wp-content/uploads/2019/02/Eickhoff_ICON_napiecie.jpg)
Voltage/frequency
3,300 V/50 Hz
![Ikona moc](http://www.eickhoff.pl/wp-content/uploads/2019/02/Eickhoff_ICON_moc.jpg)
Total installed power
2,554 kW
![Ikona prędkość organu](http://www.eickhoff.pl/wp-content/uploads/2019/02/Eickhoff_ICON_predkosc.jpg)
Cutter drum speed
29 – 41 rpm
![Ikona prędkość przejazdowa](http://www.eickhoff.pl/wp-content/uploads/2019/02/Eickhoff_ICON_predkosc_przejazdowa.jpg)
Max. haulage speed
48 m/min
![Ikona masa](http://www.eickhoff.pl/wp-content/uploads/2019/02/Eickhoff_ICON_masa.jpg)
Total weight
90 – 130 tons
![Ikona długość](http://www.eickhoff.pl/wp-content/uploads/2019/02/Eickhoff_ICON_dlugosc.jpg)
Length
15,200 – 15,900 mm
![Ikona szerokość](http://www.eickhoff.pl/wp-content/uploads/2019/02/Eickhoff_ICON_szerokosc.jpg)
Width
3,100 – 3,600 mm
![Ikona wysokość](http://www.eickhoff.pl/wp-content/uploads/2019/02/Eickhoff_ICON_wysokosc.jpg)
Height
1,850 – 2,700 mm
